SF-1 Oilless Bushing/SF-2 Marginal Bushing

Material Trademark	Alloy Composition	Alloy Hardness
JF-800	CuPb10Sn10	70~100HB
JF-720	CuPb24Sn4	45~70HB
JF-700	CuPb30	30~45HB
JF-20	AlSn20Cu	30~40HB
JF-930	CuPb6P0.1	69~90HB

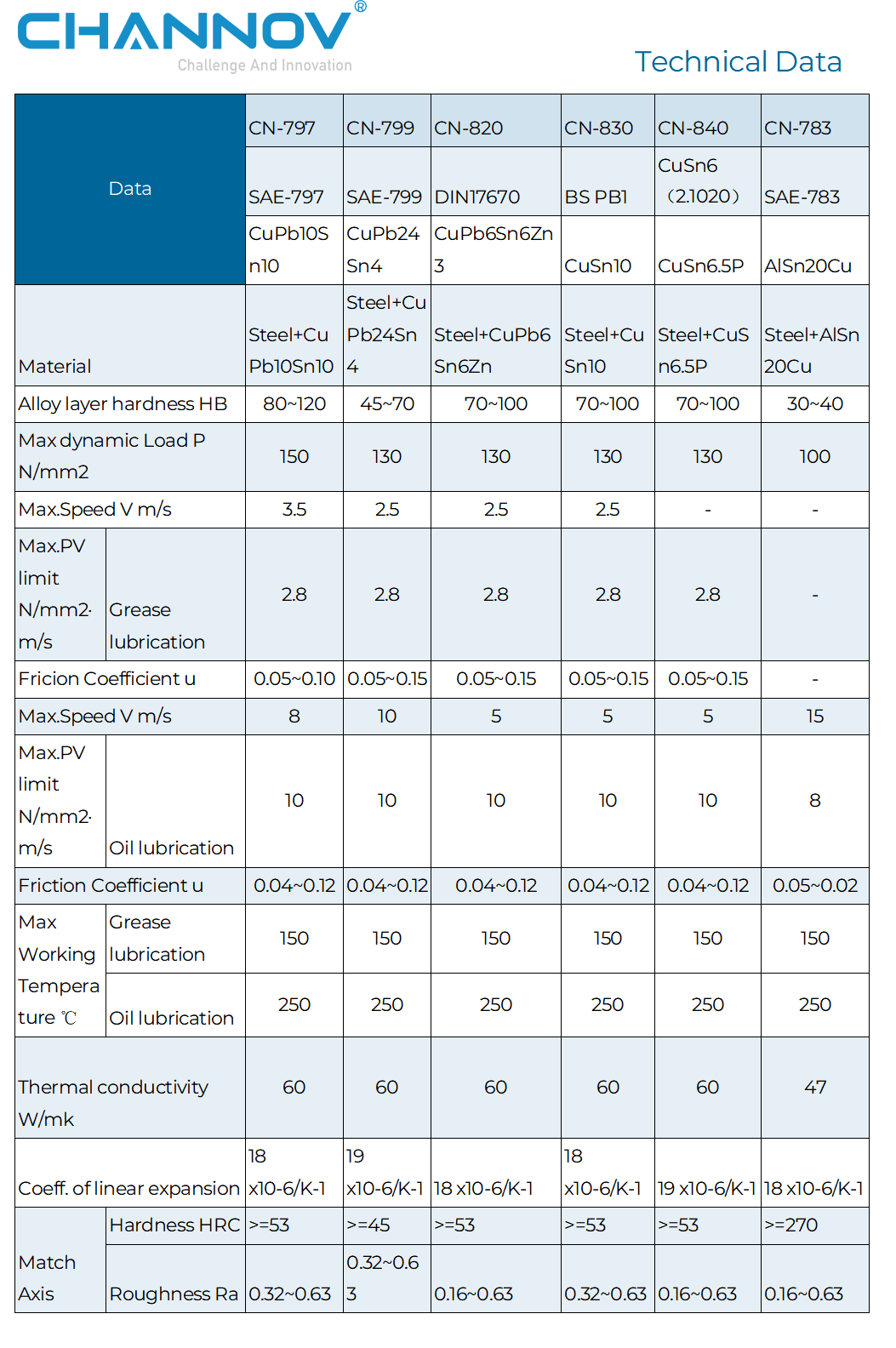

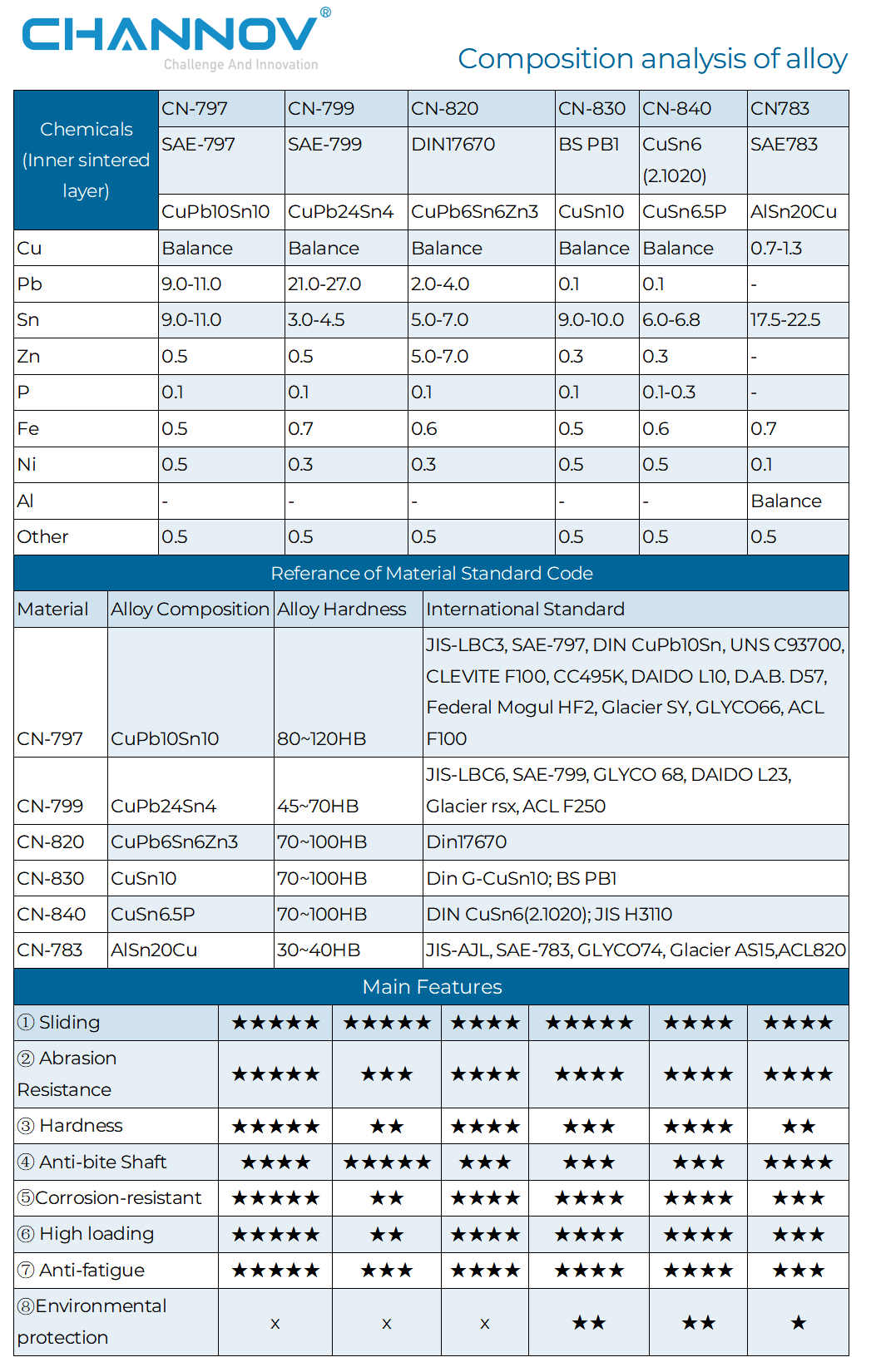

CHANNOV Bimetal Bearings Comprehensive Data Sheet: Alloy Composition Analysis, Material Standard Reference Code, and Performance Ratings for CN-797, CN-799, CN-820, CN-830, CN-840, and CN-783 Series.

CHANNOV Bimetal Bearings Data Sheet: Integrated table showing Alloy Composition Analysis, Material Standard Codes, and Performance Star Ratings for CN-797, CN-799, CN-820, CN-830, CN-840, and CN-783 series

ðŸ“„Click to Download: JF Bimetal Bushing Alloy Composition & Technical Performance Data Sheet (PDF)

Technical Q&A Summary

Q: Which material in the JF Bimetal series is most suitable for heavy-duty applications requiring maximum load resistance?

A: The CN-797 alloy is the primary choice for such requirements. It features a CuPb10Sn10 sintered layer with an alloy hardness of 80~120 HB.

This model achieves a 5-star rating for both high loading and anti-fatigue performance, supporting a maximum dynamic load of 150 N/mm².

Q: How does the lubrication type affect the performance limits of these bushings?

A: Lubrication significantly alters the operational thresholds. For instance, under grease lubrication, the Max PV limit for most models is 2.8 N/mm²·m/s.

However, when switched to oil lubrication, the Max PV limit increases substantially to 10 N/mm²·m/s, and the maximum speed can reach up to 10 m/s for the CN-799 model.

Q: What is the primary difference in lead content between CN-797 and CN-799, and how does this impact their performance?

A: According to the composition analysis, CN-797 contains 9.0~11.0% Pb, while CN-799 contains a much higher concentration of 21.0~27.0% Pb.

This higher lead content gives CN-799 a superior 5-star rating in anti-bite shaft properties and sliding performance,

though it results in lower hardness (45~70 HB) compared to CN-797.

Q: Are there lead-free or environmentally friendly options available in this series?

A: The CN-830 and CN-840 alloys are the more environmentally conscious choices, as their lead content is restricted to 0.1%.

Both models receive a 2-star rating for environmental protection. They utilize tin-bronze compositions (CuSn10 and CuSn6.5P)

and offer balanced 4-star ratings in abrasion resistance and load capacity.

Q: For high-speed applications, why might the CN-783 aluminum-based bushing be considered?

A: The CN-783 (AlSn20Cu) is specifically designed for high-velocity environments. It boasts the highest maximum speed limit in the series at 15 m/s under oil lubrication.

While its hardness is relatively low (30~40 HB), it maintains a 4-star rating for anti-bite shaft properties, making it ideal for specialized sliding applications.

CHANNOV AUTO PARTS is a leading manufacturer in the production Oilless Bush, Marginal Lubricating Bush, Bimetal bushing, Bronze Bush, Solid Lubricant Embedded Bush,

Cast bronze bearing, Teflon bushing, FR bearing, Door hinge bushing. If you want to know more about material or get a free inquiry, please contact us: [email protected] ,

we will reply to you within 2 hours.

Powder Sintered Bearings

Lock Washers

Click to Download: Wedge Lock Washers & Industrial Spring Washers Technical Data Sheet (PDF)

Lock Washers & Fasteners Q&A Summary

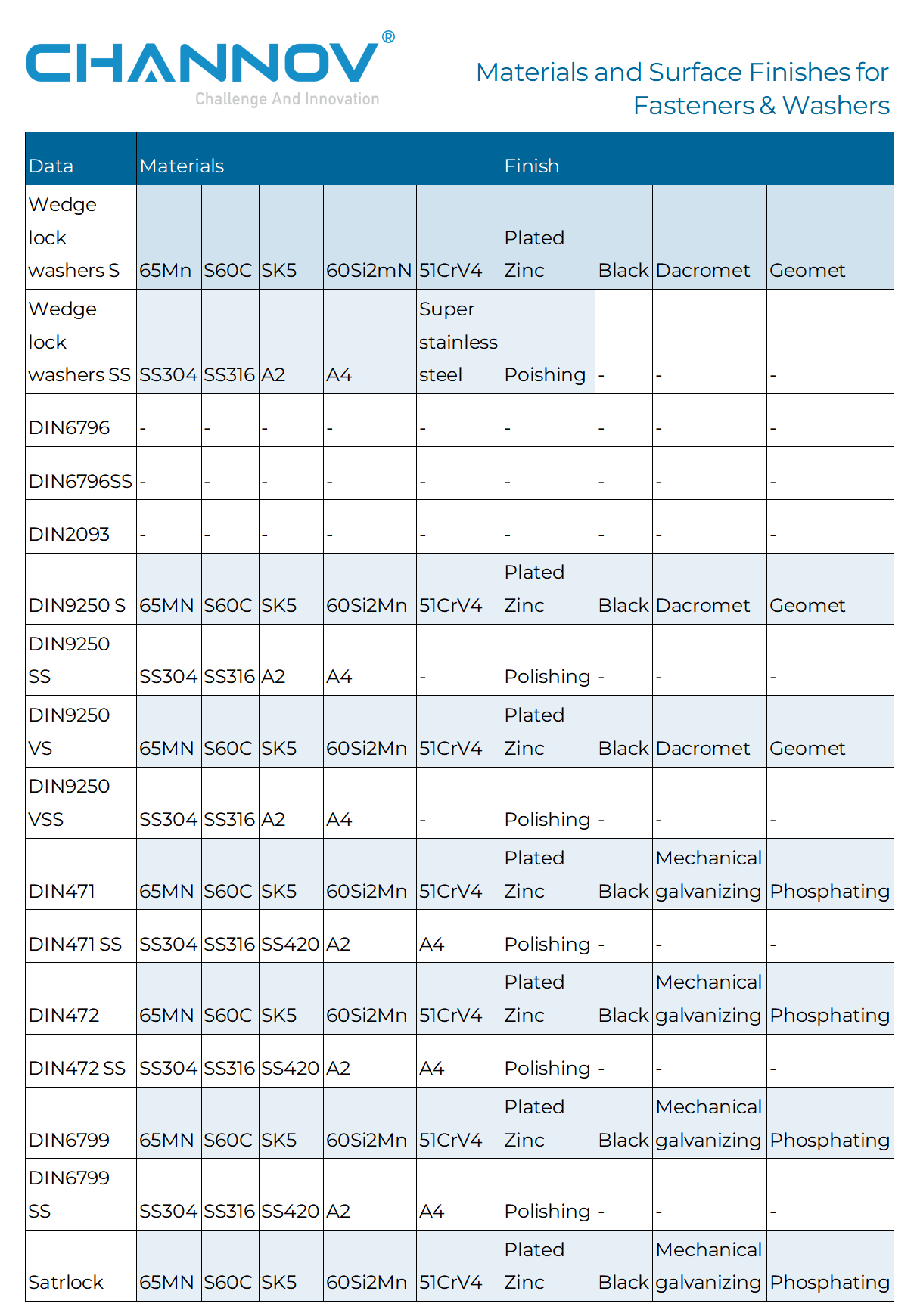

Q: What material options are available for Wedge Lock Washers to ensure high-strength performance?

A: CHANNOV offers two primary material categories for Wedge Lock Washers: carbon/alloy steel options such as 65Mn, S60C, SK5, 60Si2Mn, and 51CrV4,

as well as stainless steel options including SS304, SS316, A2, A4, and Super Stainless Steel.

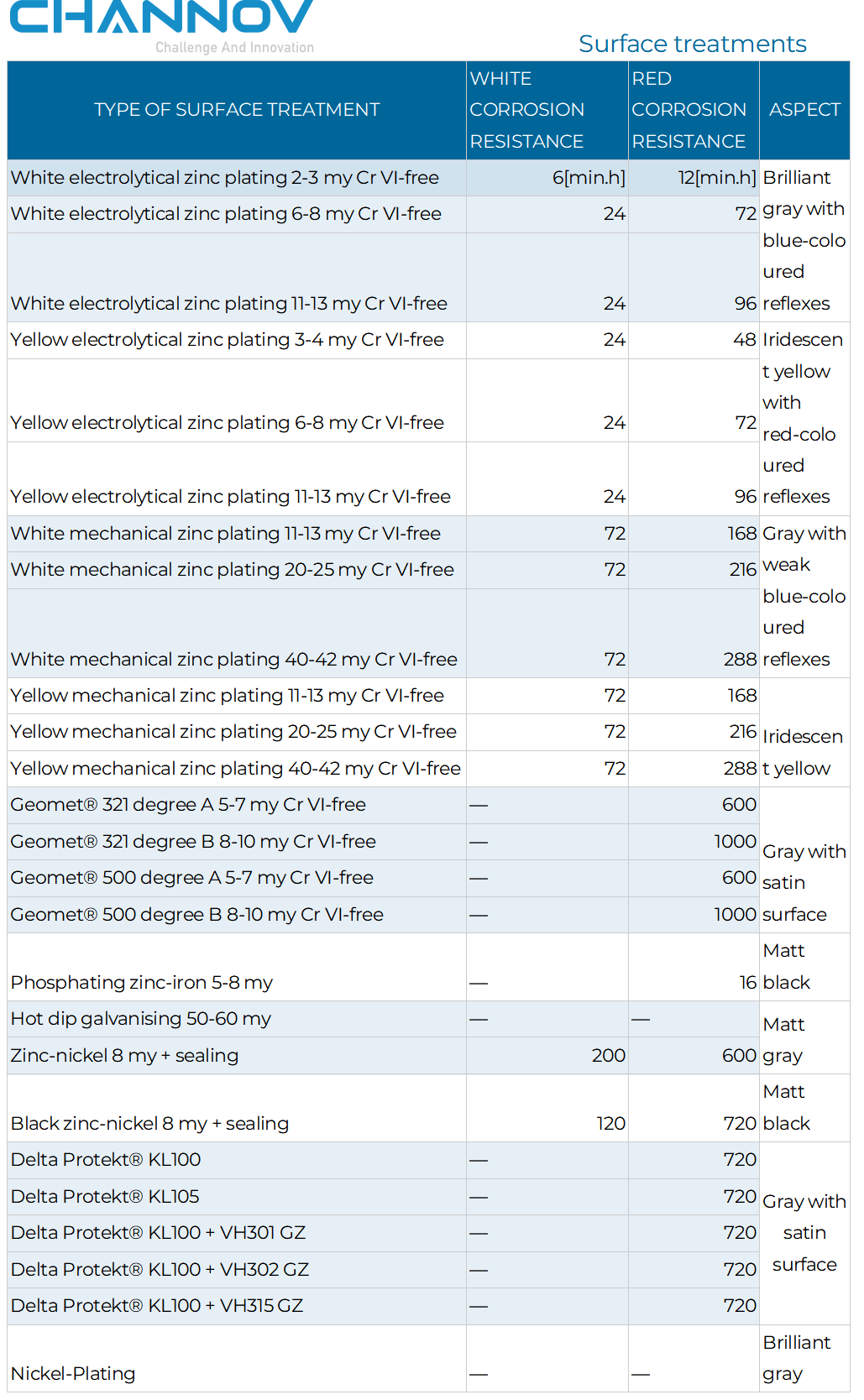

Q: Which surface treatment provides the highest corrosion resistance for steel DIN9250 washers?

A: While standard options like Plated Zinc and Black Oxide are available, Geomet® 500 Grade B offers the most robust protection, providing up to 1000 hours

of red corrosion resistance. This is significantly higher than white mechanical zinc plating, which typically offers 168 to 288 hours of resistance depending on the coating thickness.

Q: How do the finishing requirements differ between carbon steel and stainless steel DIN471 retaining rings?

A: Carbon steel DIN471 rings are typically finished with Plated Zinc, Black Oxide, Mechanical Galvanizing, or Phosphating to prevent rust.

In contrast, stainless steel versions (SS304, SS316, SS420) usually undergo Polishing to maintain their natural corrosion resistance and provide a clean aesthetic finish.

Q: What is the benefit of using Geomet® or Delta Protekt® coatings over traditional zinc plating for industrial fasteners?

A: Advanced coatings like Geomet® 321 and Delta Protekt® KL100 provide superior red corrosion resistance, ranging from 600 to 1000 hours,

whereas standard white electrolytical zinc plating may only offer 12 to 96 hours of protection. These high-performance finishes also offer a gray satin aspect,

which is preferred for heavy-duty industrial environments.

Q: Which materials are used for specialized spring components like DIN6796 and DIN2093?

A: These high-performance washers and disc springs are manufactured using specialized spring steels such as 60Si2Mn and 51CrV4,

or stainless steel variants like SS304 and SS316 to ensure consistent tension and durability under load.

CHANNOV AUTO PARTS is a leading manufacturer in the production Oilless Bush, Marginal Lubricating Bush, Bimetal bushing, Bronze Bush, Solid Lubricant Embedded Bush,

Cast bronze bearing, Teflon bushing, FR bearing, Door hinge bushing. If you want to know more about material or get a free inquiry, please contact us: [email protected] ,

we will reply to you within 2 hours.

Titanium Alloy Mechanical Properties and Grade Chart for Precision Parts

Titanium alloy TA1-TC4 mechanical properties table

Application and Characteristics of Titanium alloy

items	No.	Chemical composition		Room temperature mechanical properties			High temperature mechanical properties			Application
items	No.	Chemical composition		Heat treatment	σb/Mpa	δ/%	Test temperature/â„ƒ	σb/MPa	σ100/MPa	Application
Industri al pure titanium	TA1	Ti(Very small impurities)		Annealing	300~500	30~40				Parts that work below 350 ° C and have low strength requirements
	TA2	Ti(Very small impurities)		Annealing	450~600	25~30
	TA3	Ti(Very small impurities)		Annealing	500~700	20~25
α Tita nium	TA4	Ti-3Al Al2.0ï~3.3		Annealing	700	12				Parts operating below 500 ° C, missile fuel tanks, supersonic aircraft turbines
	TA5	Ti-4Al-0.005B	Al3.3~4.7 B0.005	Annealing	700	15
	TA6	Ti5Al Al4.0~5.5	Al4.0~5.5	Annealing	700	12~20	350	430	400
β Tita nium	TB2	Ti-5Mo-5V-8Cr-3Al	o4.7~5.7 V4.7~5.7 Cr7.5~8.5 Al2.5~3.5	Quenching	100	20				Parts that work below 400 ° C, engine parts with high temperature strength, parts for low temperature
β Tita nium	TB2	Ti-5Mo-5V-8Cr-3Al	o4.7~5.7 V4.7~5.7 Cr7.5~8.5 Al2.5~3.5	Quenching + aging	1350	8
α ï¼‹ β Tita nium	TC1	Ti-2Al-1.5Mn	Al1.0~2.5 Mn0.7~2.0	Annealing	600~800	20~25	350	350	350	Parts that work below 400 ° C, engine parts with high temperature strength, parts for low temperature
	TC2	Ti-3Al-1.5Mn	Al3.5~5.0 Mn0.8~2.0	Annealing	700	12~15	350	430	400
	TC3	Ti-5Al-4V	Al4.5~6.0 V3.5~4.5	Annealing	900	8~10	500	450	200
	TC4	Ti-6Al-4V	Al5.5~6.8 V3.5~4.5	Annealing	950	10	400	630	580
	TC4	Ti-6Al-4V	Al5.5~6.8 V3.5~4.5	Quenching + aging	1200	8

Click to Download: Titanium Alloy Grades & Mechanical Properties Technical Data Sheet (PDF)

As a leading manufacturer of Oilless Bushings and Bimetal bushings, we use high-quality titanium alloys for specific high-performance applications.

Below are the technical characteristics of common titanium grades used in our production process.

Common Questions on Titanium Alloy Applications & Characteristics

Q: What are the main applications for Industrial Pure Titanium (TA1, TA2, TA3)?

A: According to the technical chart, Industrial Pure Titanium grades like TA1, TA2, and TA3 are primarily used for parts that work at temperatures below 350°C

and have low strength requirements. They are valued for their excellent corrosion resistance in various environments.

Q: Which titanium alloy grade is recommended for high-temperature aerospace components?

A: For high-performance applications like missile fuel tanks and supersonic aircraft turbines, TA5 (Ti-4Al-0.005B) is highly recommended

as it can operate effectively at temperatures up to 500°C. Additionally, TC4 (Ti-6Al-4V) is a versatile choice for engine parts requiring high temperature strength up to 400°C.

Q: How do the mechanical properties of TC4 titanium alloy change with heat treatment?

A: The chart shows that TC4 (Ti-6Al-4V) alloy's tensile strength ($\sigma$b/Mpa) is approximately 900 after Annealing.

However, when undergoing Quenching + aging, its strength can be significantly enhanced to reach 1200 Mpa, providing superior load-bearing capacity for demanding industrial components.

Q: What is the typical use for $\beta$ Titanium alloys like TB2?

A: TB2 (Ti-5Mo-5V-8Cr-3Al) is an ideal material for engine parts that require high temperature strength while working below 400°C.

It offers a unique balance of plasticity and high strength, especially after specialized heat treatments like quenching.

CHANNOV AUTO PARTS is a leading manufacturer in the production Oilless Bush, Marginal Lubricating Bush, Bimetal bushing, Bronze Bush,

Solid Lubricant Embedded Bush, Cast bronze bearing, Teflon bushing, FR bearing, Door hinge bushing. If you want to know more about material or get a free inquiry,

please contact us: [email protected] , we will reply to you within 2 hours.

Chemical Composition of Copper Alloys: Lead Brass, Ordinary Brass & Cupronickel Series | Channov Precision

Lead brass and ordinary brass chemical composition chart - Channov Precision Chemical composition of copper alloys(%)

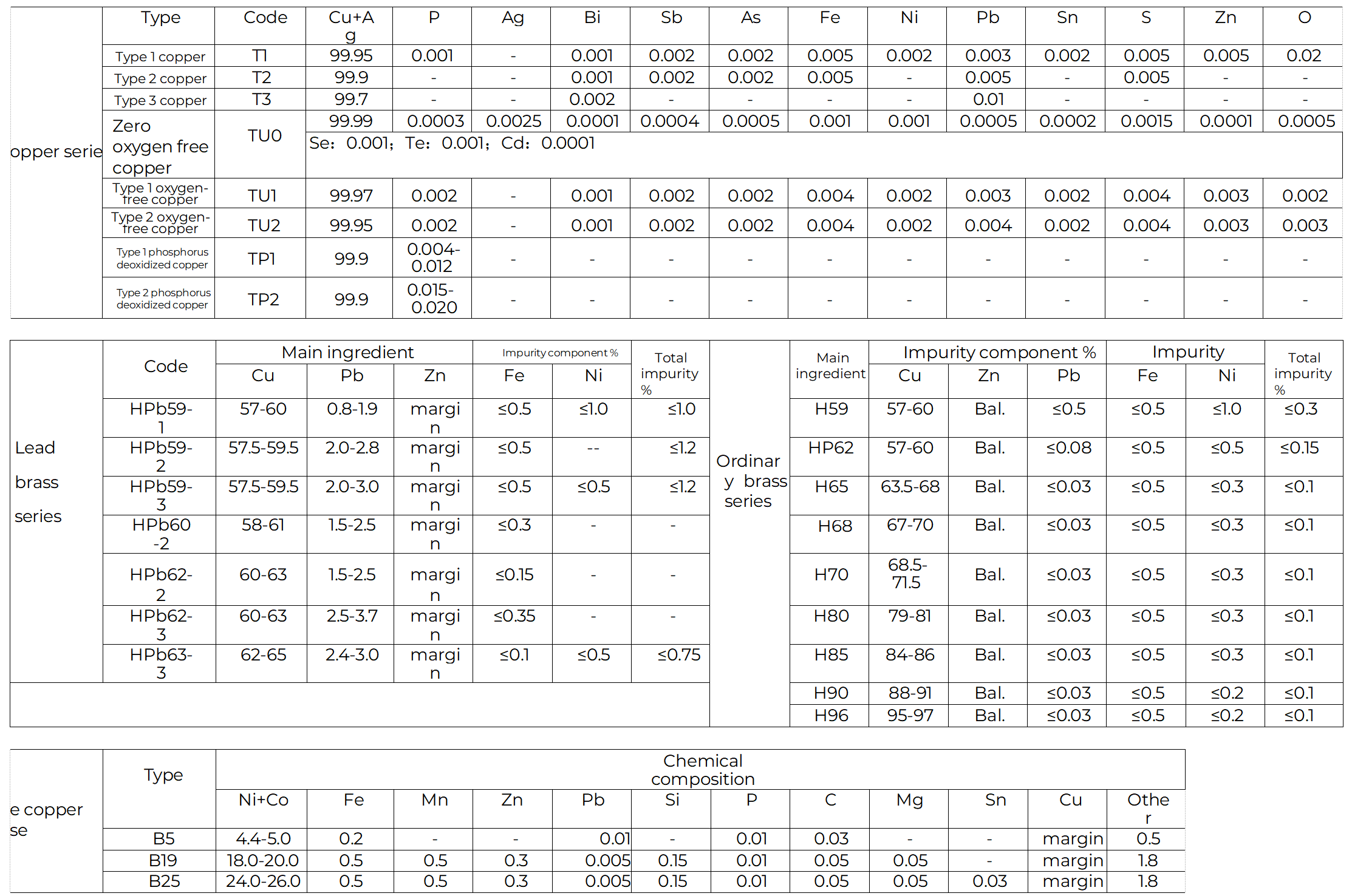

Chemical composition of copper alloys: Lead brass (HPb59-1, HPb62-3), Ordinary brass (H59, H65), and Cupronickel (B5, B19, B25) - CHANNOV Precision

Click to Download: Copper & Copper Alloys Chemical Composition Standard Data Sheet (PDF)

Common Questions on Copper Alloy Chemical Compositions

Q: What is the purity level of Zero oxygen free copper (TU0) and Type 1 oxygen-free copper (TU1)?

A: Based on the copper series data, Zero oxygen free copper (TU0) maintains a high purity of 99.99% Cu+Ag, while Type 1 oxygen-free copper (TU1) has a purity level of 99.97%.

Both materials feature extremely low impurity levels for specialized electronic and industrial applications.

Q: What are the main ingredients of Lead brass series like HPb59-1?

A: For HPb59-1, the main ingredients consist of 57-60% Copper (Cu) and 0.8-1.9% Lead (Pb), with Zinc (Zn) making up the margin.

The addition of lead significantly improves the machinability of the alloy.

Q: How does the copper content vary in ordinary brass series such as H62 and H90?

A: In the ordinary brass series, the copper content varies by grade: H62 contains 60.5-63.5% Cu, while H90 features a much higher copper content of 88-91%.

Higher copper content generally provides better corrosion resistance and ductility.

Q: What are the chemical specifications for B19 cupronickel (white copper)?

A: B19 cupronickel is characterized by a Nickel + Cobalt (Ni+Co) content of 18.0-20.0%.

It also includes approximately 0.5% Iron (Fe) and 0.5% Manganese (Mn) to enhance its mechanical properties and resistance to marine environments.

CHANNOV AUTO PARTS is a leading manufacturer in the production Oilless Bush, Marginal Lubricating Bush, Bimetal bushing, Bronze Bush, Solid Lubricant Embedded Bush,

Cast bronze bearing, Teflon bushing, FR bearing, Door hinge bushing. If you want to know more about material or get a free inquiry, please contact us: [email protected] ,

we will reply to you within 2 hours.

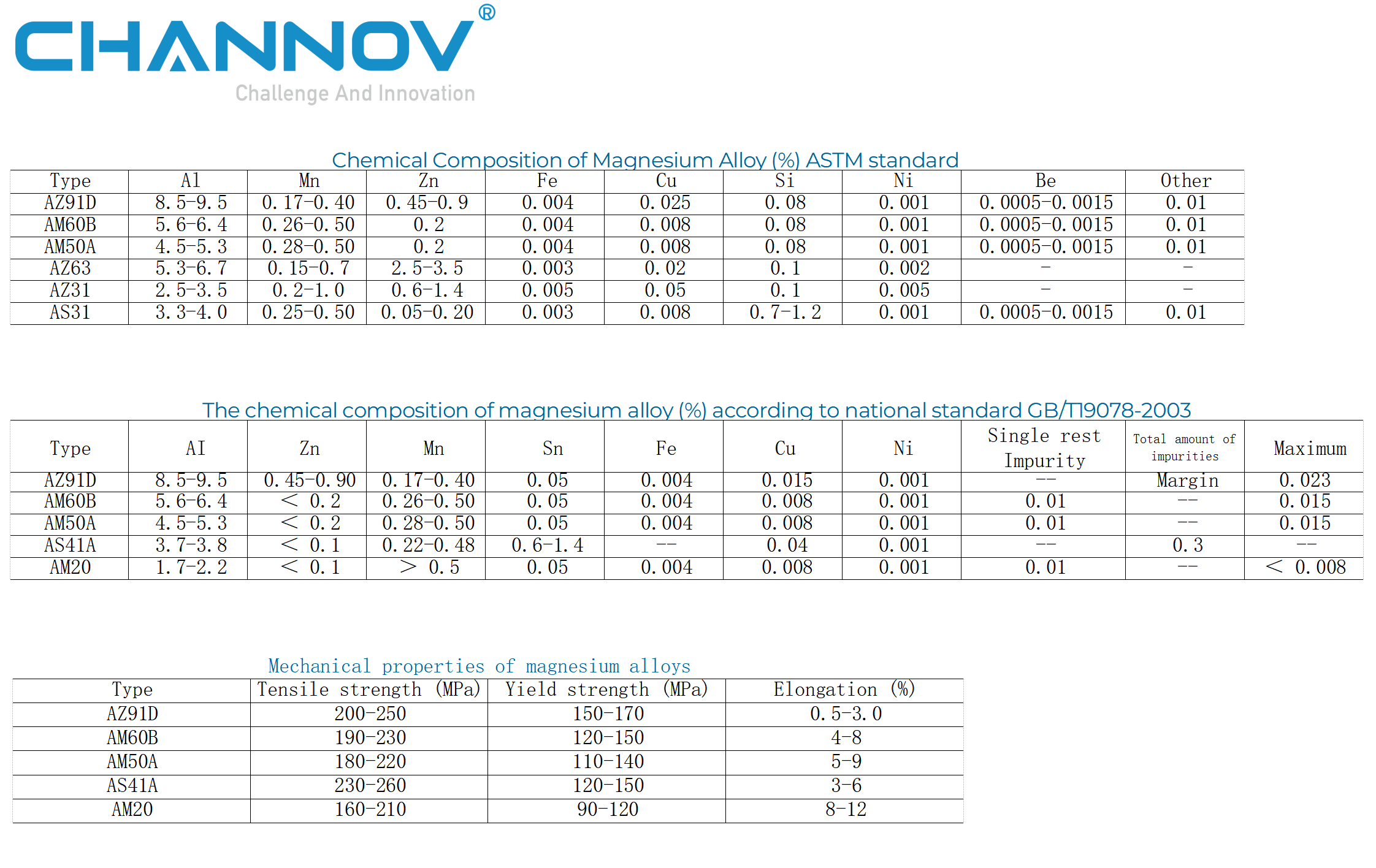

Magnesium Alloy Chemical Composition & Mechanical Properties: ASTM vs GB/T Standards

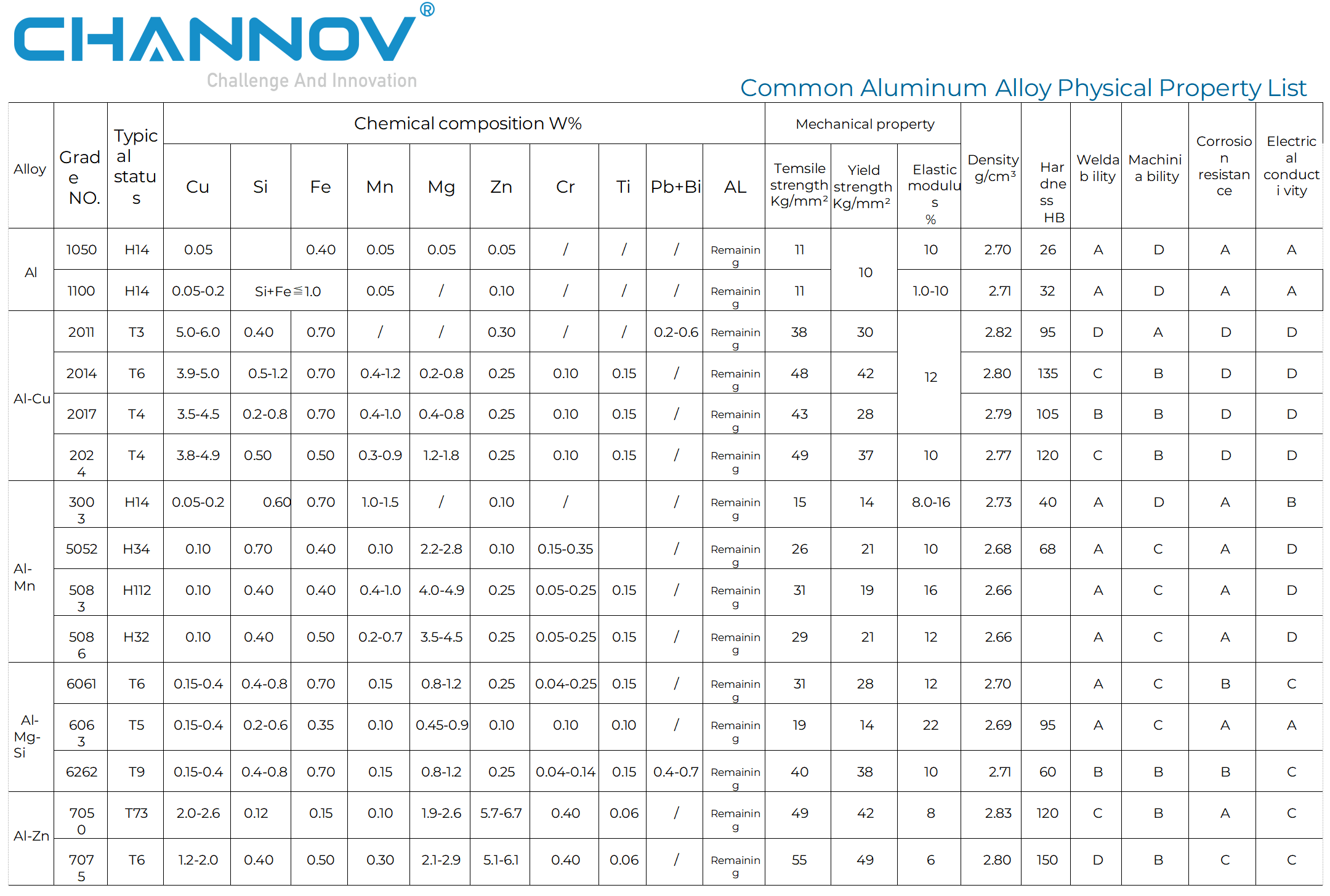

Common Aluminum Alloy Properties: Chemical Composition & Mechanical Data Chart

CHANNOV - Common aluminum alloy physical property list: Chemical composition and mechanical properties of 2000, 5000, 6000, 7000 series

Grade	Weldability	hiniabil	Corros ion resist ance	Electr ical conduc tivity %IACS
A	easy to weldea	Excellent	Very good	55-63
B	weldable in most of application	Very good	Good	50-55
C	Welding is restrained	Good	Average	40-50
D	Welding is not recommended	Not good	Bad	30-40

Click to Download: Common Aluminum Alloys Physical & Mechanical Properties Data Sheet (PDF)

Common Questions on Aluminum Alloy Physical & Mechanical Properties

Q: Which aluminum alloy series offers the highest tensile strength according to the property list?

A: The Al-Zn series (7000 series) provides the highest mechanical strength. Specifically, 7075 T6 reaches a tensile strength of 55 Kg/mm²

and a yield strength of 49 Kg/mm², making it ideal for high-stress aerospace applications.

Q: How does the machinability of 2011 T3 compare to 5052 H34?

A: Based on the machinability ratings (where A is excellent), 2011 T3 is rated A for high machinability, while 5052 H34 is rated C,

meaning its machining performance is more restrained. 2011 is specifically designed for screw machine products.

Q: What are the corrosion resistance and weldability ratings for the 5000 series (Al-Mn/Al-Mg)?

A: The 5000 series, including 5052, 5083, and 5086, all feature an A rating for both corrosion resistance and weldability.

This makes them the preferred choice for marine environments and structures requiring high-quality welded joints.

Q: What is the electrical conductivity of pure aluminum grade 1050 H14?

A: According to the technical data, 1050 H14 has an excellent electrical conductivity rating of A, with a specific value ranging between 55-63% IACS.

This high conductivity, combined with a density of 2.70 g/cm³, makes it perfect for electrical conductors.

CHANNOV AUTO PARTS is a leading manufacturer in the production Oilless Bush, Marginal Lubricating Bush, Bimetal bushing, Bronze Bush,

Solid Lubricant Embedded Bush, Cast bronze bearing, Teflon bushing, FR bearing, Door hinge bushing. If you want to know more about material or

get a free inquiry, please contact us: [email protected] , we will reply to you within 2 hours.

Common Titanium and Titanium alloy type and chemical compositions

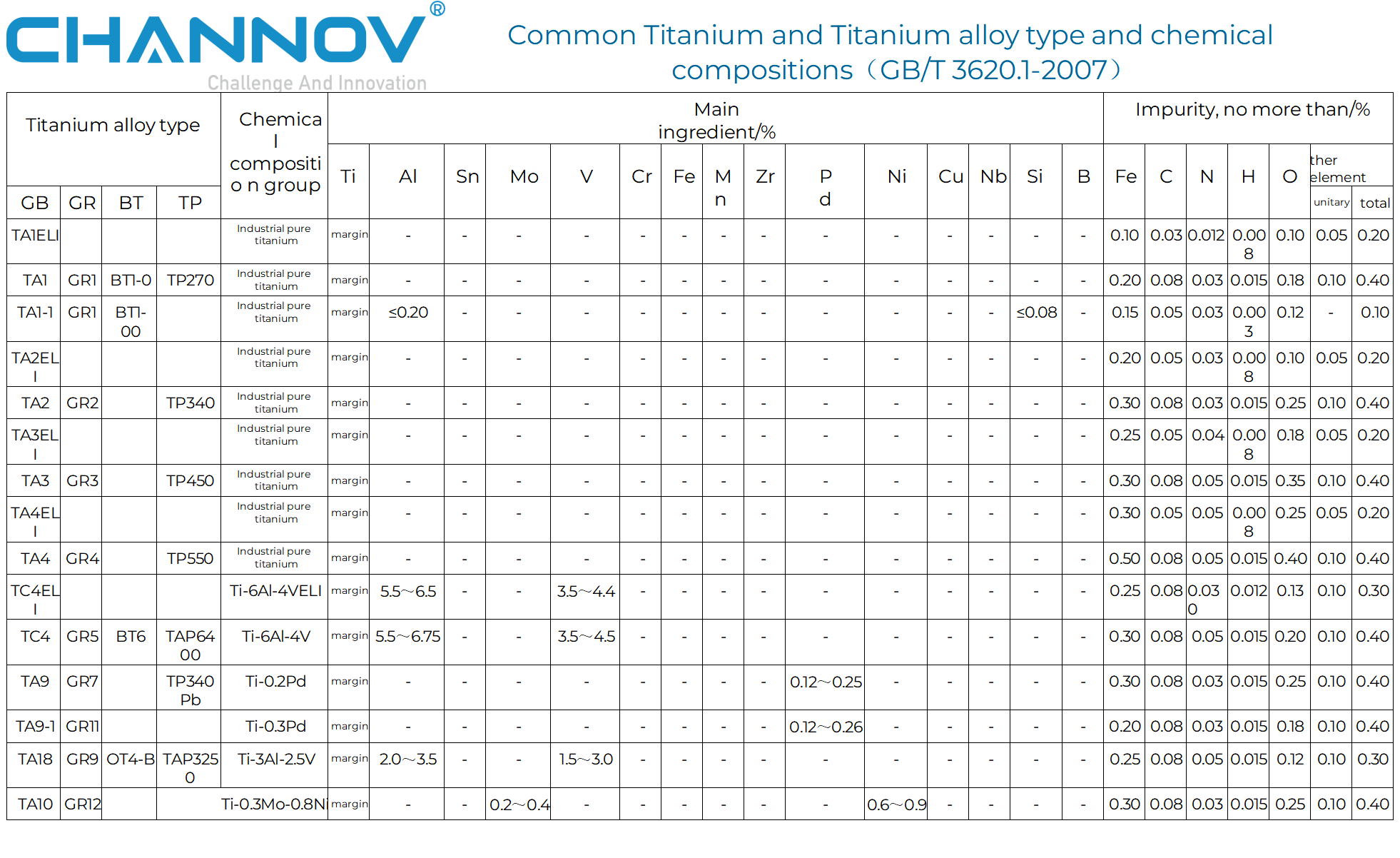

CHANNOV - Common titanium and titanium alloy chemical composition table: TA1, TA2, TC4, TA9, TA18 grades (GB/T 3620.1-2007)

Click to Download: Common Titanium & Titanium Alloy Chemical Composition Standard (GB/T 3620.1) Data Sheet (PDF)

Common Questions on Titanium Alloy Chemical Compositions

Q: What are the main chemical ingredients of TC4 (GR5) titanium alloy?

A: According to the GB/T 3620.1-2007 standard, TC4 (GR5) titanium alloy consists of 5.5–6.75% Aluminum (Al) and 3.5–4.5% Vanadium (V), with titanium (Ti) as the remainder.

For the TC4ELI version, the aluminum content is slightly tighter at 5.5–6.5% and vanadium at 3.5–4.4%.

Q: How does the impurity control differ between TA1ELI and TA1 industrial pure titanium?

A: TA1ELI (Extra Low Interstitials) has much stricter impurity limits than standard TA1. For instance, the maximum Iron (Fe) content for TA1ELI is 0.10% and Oxygen (O) is 0.10%,

whereas standard TA1 allows up to 0.20% Iron and 0.18% Oxygen.

Q: What is the unique composition of TA9 (GR7) and TA9-1 (GR11) alloys?

A: These alloys are characterized by the addition of Palladium (Pd) to improve corrosion resistance. TA9 (GR7) contains 0.12–0.25% Palladium, while TA9-1 (GR11) contains 0.12–0.26% Palladium.

Both maintain high titanium purity with standard interstitial impurity controls.

Q: Which titanium alloy grade includes Molybdenum (Mo) and Nickel (Ni) in its composition?

A: TA10 (GR12) titanium alloy specifically includes 0.2–0.4% Molybdenum (Mo) and 0.6–0.9% Nickel (Ni). This specific combination enhances the alloy's strength and resistance to crevice corrosion

in high-temperature environments.

CHANNOV AUTO PARTS is a leading manufacturer in the production Oilless Bush, Marginal Lubricating Bush, Bimetal bushing, Bronze Bush, Solid Lubricant Embedded Bush,

Cast bronze bearing, Teflon bushing, FR bearing, Door hinge bushing. If you want to know more about material or get a free inquiry, please contact us: [email protected] ,

we will reply to you within 2 hours.

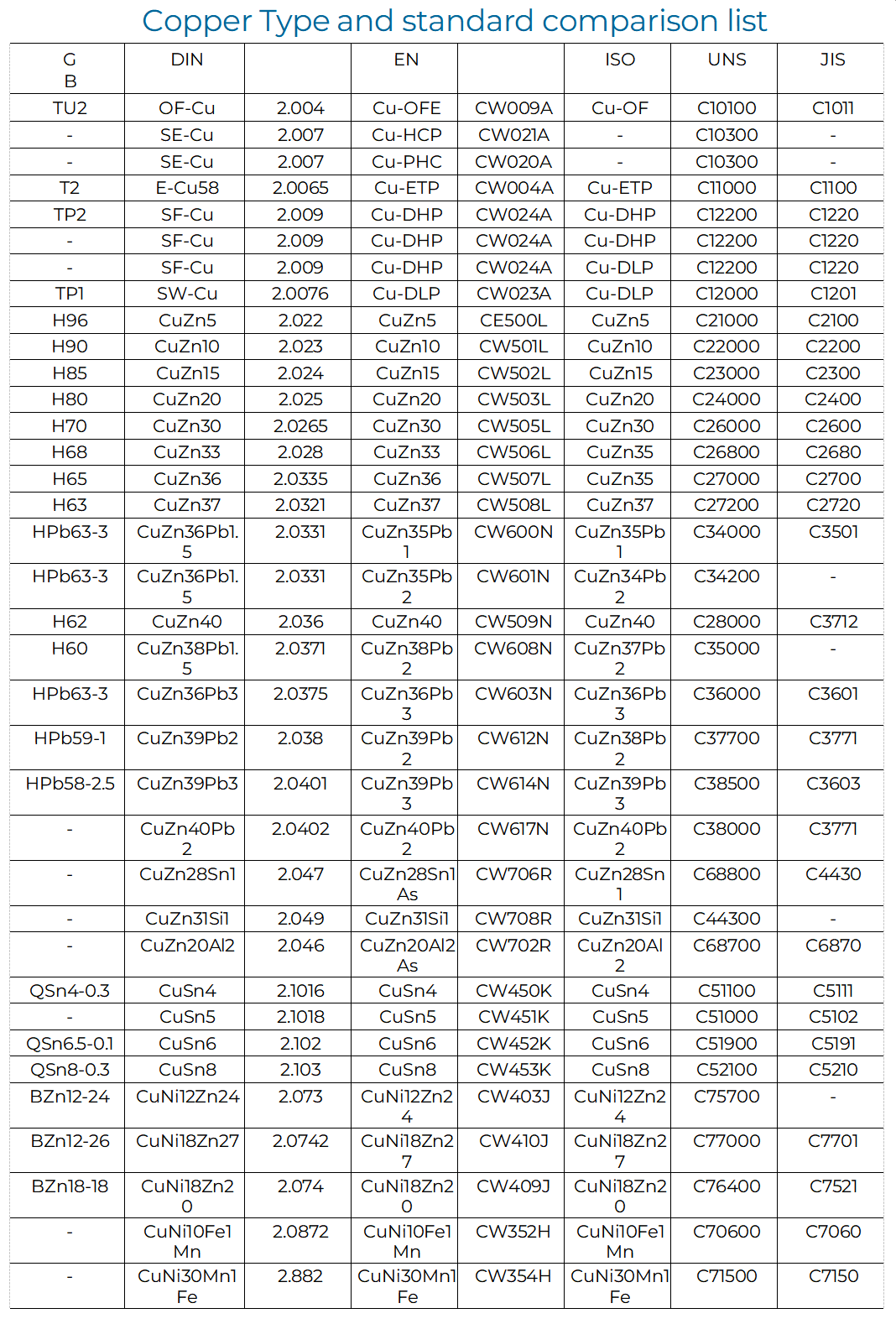

Copper Type and standard comparison list
