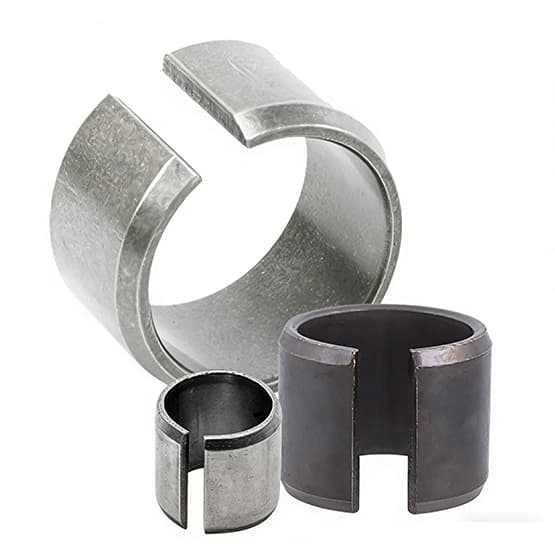

Pls Scan our customer service whatsappSpring bushings with split, tension bushings with split & slotted tension bushings, hardened steel AISI6150, 51CrV4
Resilience Under Pressure: A Technical Guide to Hardened Spring Steel Split Bushings
In heavy-duty machinery, hydraulic cushioning, and high-frequency rotational applications, the wear and tear on linkage pins is a constant maintenance challenge. Traditional solid bushings often force a compromise between surface hardness and core toughness.
SinoBronze hardened spring steel split bushings (also known as tension bushings) are engineered to eliminate this compromise using premium alloys like AISI 6150, 50CrV4, and 50CrVA.
I. Material Science: Why Alloy Selection Matters
The performance of a tension bushing is dictated by its chemical composition. Unlike standard carbon steel, our bushings utilize Chromium-Vanadium (Cr-V) and Manganese (Mn) alloys to achieve superior mechanical properties.
Chemical Composition & Performance Matrix
|
Standard/Grade |
Key Elements |
Engineering Benefit |
|
AISI 6150 / 50CrV4 |
Cr: 0.80-1.10%, V: ≥ 0.15% |
Vanadium (V) refines the grain structure, allowing the bushing to achieve high hardness while remaining ductile enough to resist cracking under impact. |
|
SUP 10 / 50CrVA |
Cr: 0.80-1.10%, V: 0.10-0.25% |
Optimized for high fatigue strength, ensuring the "spring" effect remains consistent over millions of cycles. |
|
65Mn |
Mn: 0.90-1.20% |
High hardenability and excellent cost-to-performance ratio for standard wear resistance. |
Key Features:
- Surface Treatment: Available with Zinc coating, Phosphating, or Bonderizing to guarantee maximum corrosion resistance in outdoor or corrosive environments.
- Dual-Zone Integrity: A hardened exterior provides wear resistance, while the interior remains resilient to prevent catastrophic failure under shock loads.
II. Technical Comparison: Split Tension Bushings vs. Standard Alternatives
What distinguishes our Hardened Spring Steel Split Bushings from generic tension bushings found on the market?
1. High-Elasticity Alloy vs. Basic Spring Steel
Generic bushings often use basic high-carbon steel (like 65Mn) which can lose its "tension" over time. Our use of 50CrV4/AISI 6150 ensures a higher elastic limit. This means the bushing maintains a tighter press-fit against the housing wall even after prolonged vibration, preventing the "spinning" that ruins expensive housings.
2. Precision Lubrication Options
While standard tension bushings are often designed for dry running, SinoBronze offers specialized grease grooves or oil holes upon request. For high-precision or high-speed applications, these features reduce friction heat and working noise, significantly extending the service life of both the bushing and the mating pin.
3. Ease of Replacement & Self-Locking
The "split" design is not just for ease of installation; it acts as a self-locking mechanism. The inherent spring tension of the alloy steel creates a friction-tight fit that compensates for minor tolerances in the housing, making it an ideal "easy-replacement" solution for field repairs on heavy equipment.
III. Typical Applications
Our bushings are the industry standard for:
- Earthmoving & Construction: Excavator shovel discharge plates, bulldozer linkages, and backhoe pivot points.
- Material Handling: Forklift mast rollers, conveyor chains, and chain-through conveyors.
- Heavy Industry: Door hinges for industrial gates and hydraulic cylinder eye-ends.
IV. Expert Guidance & Technical Support
If you have questions regarding material selection or require specific product dimensions and data sheets, we are here to help. Please submit your inquiry via our website contact form or email us directly at [email protected] for a detailed technical consultation.
