HT-625
Properties

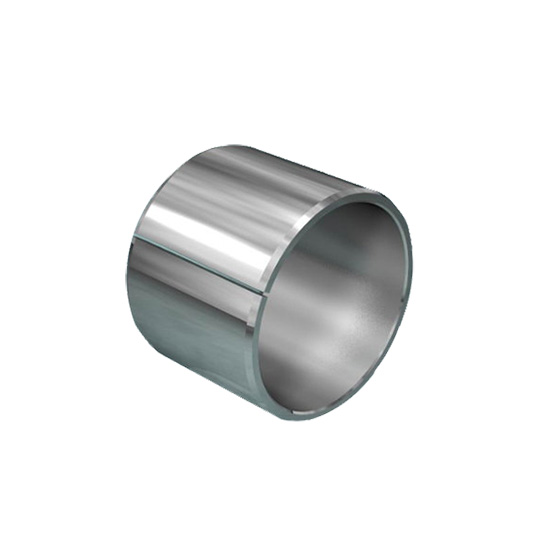

HT-625 identify a new generation of Sliding Bearings dedicated at high temperature. This bearing can be used from -200°C to +430°C. Made in Inconel 625 with a special coating treatment"Duritex ML" With this material we obtained Plain Sliding Bearings, Washers and special parts based on customer drawings.
Materials
| Layer | Average analyses of the material | Thickness of layer |
| Sliding layer | Special Surface Treatment "Duritex ML" | 0,15 mm(Min) |
| Inconel 625 |
Bronze CuSn8P C = 0,10% Max Mn = 0,05 % Max Cr = 20 ÷ 23 % Mo = 8 ÷ 10 % Co = 1% Max Ta + Nb = 3.15 ÷ 4.15 % Ni = Resto |
0.50 - 2,70 mm (Depending on Dim. of the Bearing) |
Operating Conditions
| Dry | Good |
| Oil | Very Good |
| Grease | Very Good |
| Water | Good |
| Process fluid | Good |
Characteristics
| High load capacity at high temperature |
| Self lubricating |
| Low Static and Dynamic friction factor |
| Minimum wear and excellent life services |
| Easy to mount |
| High chemical inertia |
